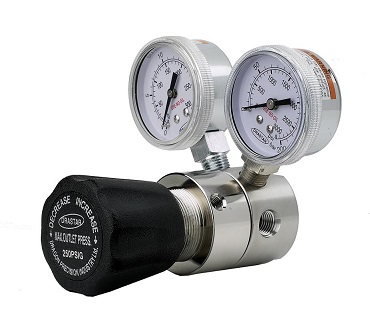

رگولاتور گاز فوق خالص تا 99.9999رگولاتور(رگلاتور فشار شکن)

دریافت کاتالوگ

دریافت نقشه اتوکد

فشار ورودی

H = 3500psi(238bar)

L = 600psi(41bar)

فشار خروجی

025 = 1-25psi (.1-1.7bar)

050 = 1-50psi (.1-3.5bar)

100 = 1-100psi (.1-7bar)

250 = 1-250psi (.2-17bar)

پورت ورودی و خروجی

4HP = 1/4" H.P.I.C

4MS = 1/4" Male Swivel —- 94mm
4FS = 1/4" Female Swivel — 94mm
4FL = 1/4" Female Swivel — 000mm
4ML = 1/4" Male Swivel —- 000mm

8MS = 3/8" Male Swivel —- 120mm
8FS = 3/8" Female Swivel — 120mm

2MS = 1/2" Male Swivel —- 140mm
2FS = 1/2" Female Swivel — 140mm
2ML = 1/2" Male Swivel —- 000mm
2FL = 1/2" Female Swivel — 000mm

3MS = 3/4" Male Swivel —- 160mm
3FS = 3/4" Female Swivel — 160mm

4IMF = In 1/4" Male
          Out 1/4" Female —– 94mm
4IFM = In 1/4" Female
          Out 1/4" Male ——- 94mm

2IMF = In 1/2" Male
          Out 1/2" Female —– 140mm
2IFM = In 1/2" Female
          Out 1/2" Male ——- 140mm
2IMFL = In 1/2" Male
          Out 1/2" Female —– 000mm
2IFML = In 1/2" Female
          Out 1/2" Male ——- 000mm

4TS = 1/4" Tube Stubs —- 94mm

8TS = 3/8" Tube Stubs —- 94mm

2TS = 1/2" Tube Stubs —- 120mm

3TS = 3/4" Tube Stubs —- 120mm

جنس بدنه

A = 316L Bright Annealed ———– B.A

B = 316L Electro polish ————- 10Ra

C = 316L Intimal Electro polish —– 10Ra

D = 316L Electro polish VAR(P.E.P) — 10Ra

E = 316L Electro polish VAR(P.E.P) — 5Ra

جنس دیافراگم

S = sts 316l

h = hastelloy-c

ظرفیت دبی

S = cv 0.06 standard (1/4")

o = cv 0.2 optional (1/4")

s = cv 0.2 optional (3/8")

s = cv 0.5 optional (1/2")

o = cv 1.0 optional (1/2")

s = cv 1.2 standard (3/4")

نرخ نشتی

To 1 x 10-9 atm cc/sec Helium available.
